Reciprocating Vertical Conveyor
Point-to-point vertical transfer between defined levels.

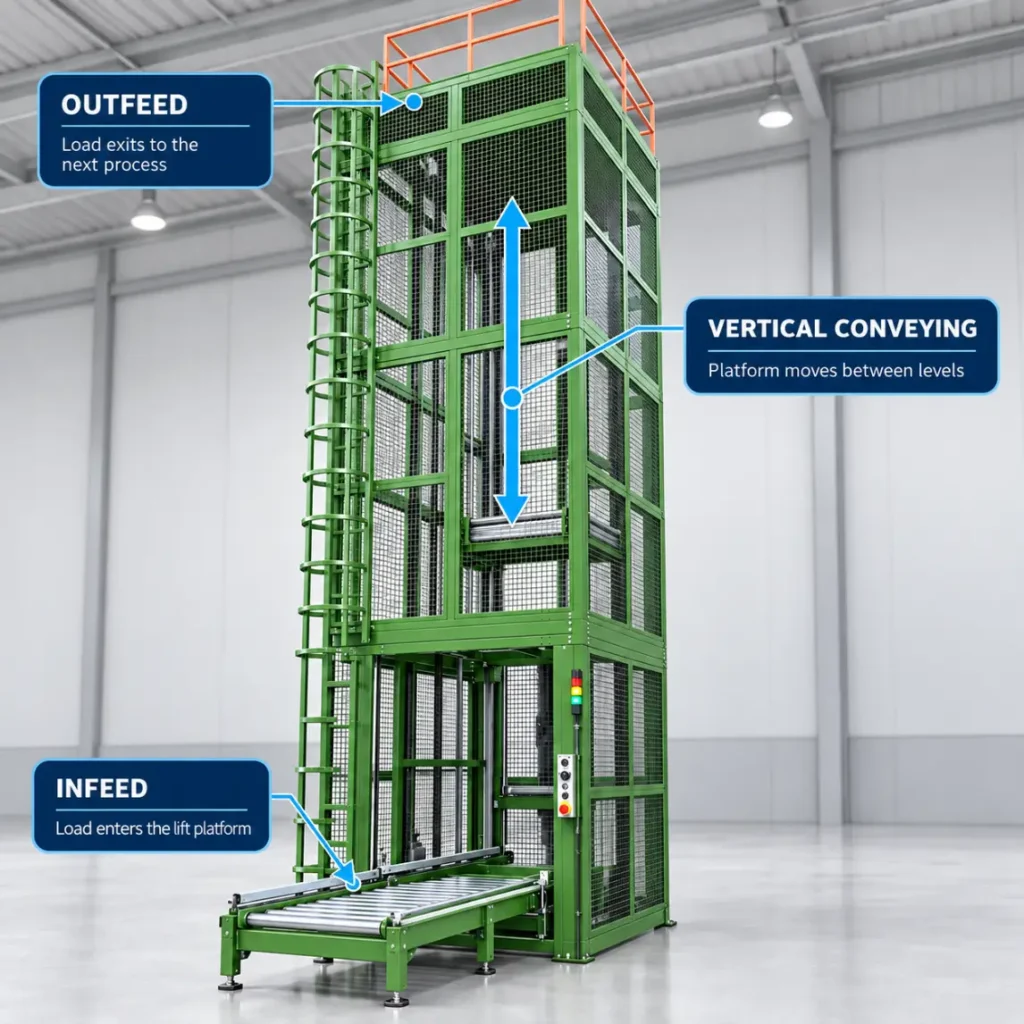

Working Principle
INFEED
Load enters the lift platform
→
VERTICAL CONVEYING
Platform moves between levels
→
OUTFEED
Load exits to the next process
Applications
Suitable Load
Cartons, totes, pallets and other unit loads requiring stable point-to-point vertical transfer.
Typical Scenarios
Multi-floor warehouses, production lines, storage areas and automated handling systems with defined loading and unloading levels.
Conveying Mode
Lift-platform transfer connecting roller, belt or chain conveyors. Infeed and outfeed positions are configured around the project layout.
PROJECT INFORMATION CHECKLIST
What to Prepare for a Faster Technical Review
You do not need every detail for the first conversation. The items below help us understand the application and identify the next questions.
Please share the information you already have. Any missing details can be clarified during the application review.
01
Load Dimensions
Length × width × height of the product, carton, tote or pallet.
02
Load Weight
Weight per item or carrier, including the load support where relevant.
03
Lift Height
Vertical distance and the elevation of each required transfer point.
04
Throughput
Required units per hour or the expected transfer cycle.
05
Levels Served
Number of levels and the loading or unloading requirement at each level.
06
Conveyor Interfaces
Existing conveyor type, elevation, direction and available connection space.
07
Site Layout Drawing
Available floor plan, equipment arrangement, building dimensions or site photos.

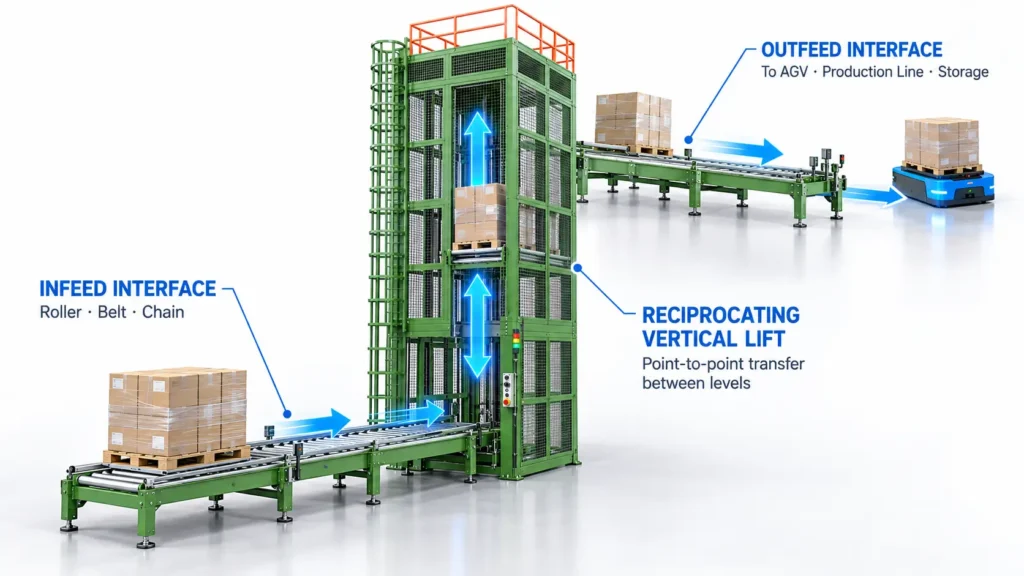

System Interface
Infeed Interface
Roller · Belt · Chain
→
Reciprocating Vertical Lift
Point-to-point transfer between levels
→
Outfeed Interface
To AGV · Production Line · Storage
Send Project Requirements
